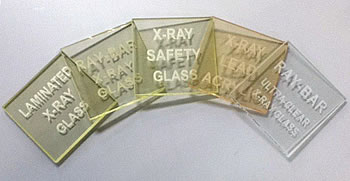

X-Ray Glass Specialty Applications

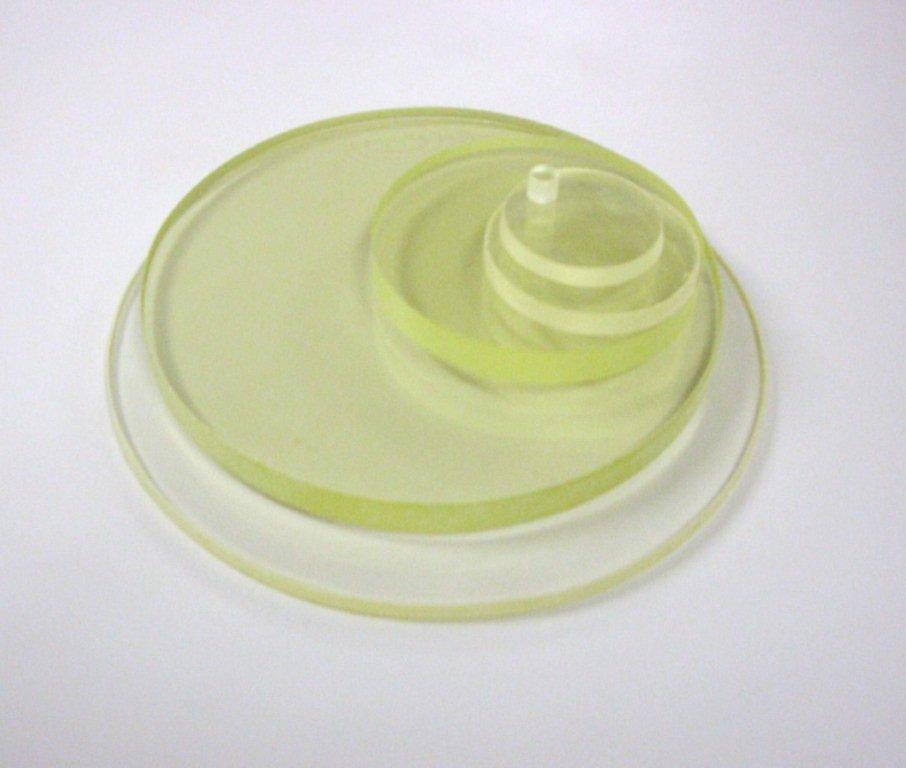

Ray-Bar X-Ray Glass Discs

• Available from 1/4" to 24" diameters
• Several radiation shielding levels available
• Optional Impact Resistant

Ray-Bar X-Ray Glass Discs are custom fabricated for shielded view ports. Discs are available from diameters as small as 0.25" (1/4") up to 14" with a standard diameter tolerance of +/- 0.030" and diameters from 14” to 24” with a tolerance of +/- 0.0625”. This product is available in lead shielding equivalencies of 2mm, 2.4mm, 3.2mm and 3.7mm for use in non-destructive testing, vacuum chambers, cabinets, inspection processes, hot cells and glove box applications. Material thickness ranges are from 5/16' to 1/2" depending upon the lead shielding equivalency requirements.

This product is also available as X-Ray Safety Glass which meets ANSI Z.97.1 and CPSC 16 CFR 1201 Cat 2 requirements for impact resistance.

Back to top

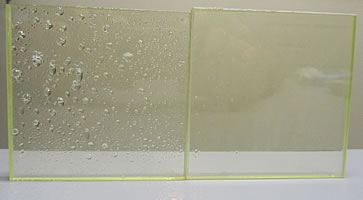

Ray-Bar "Easy Clean" X-Ray Glass

Ray-Bar's "Easy-Clean" X-Ray Glass provides x-ray protection from Alpha, Beta and Gamma Ionizing radiation for proper shielding of medical diagnostic imaging procedures.

Protective level: 1.6MM / 4# / 1/16" Pb shielding equivalency @ 150 kVp is minimum standard.

Additionally Ray-Bar treats and cures our x-ray glass with a permanent specialized surface coating that permeates deep into the glass crystalline structure to provide a dirt repelling easy to clean x-ray glass that resists the adhesion of bacteria to its surfaces and thus produces the results of inhibiting bacterial colonization and "bio-film" build ups.

Our coatings and treatments do not wash away or wear off from cleaning or utilizing sanitizing solutions. *Please Note: Never use any caustic or abrasive cleaners on glass products!

Glass was tested before and after our treatment coating was applied, and also compared as superior to other standard glass as tested by a Qualified Independent Microbiology Laboratory.

All laboratory tests and results verified excellent performance when utilizing properly treated-coated glass against the example of: Glass exposed to Staphylococcus aureus for resisting the pathogens bacterial adherence, and desorption performance (elimination of an absornbed substance from a surface).

*Other Available Options for this Product:

• Easy Clean X-Ray Glass is available in higher shielding protection levels.
• Easy Clean X-Ray Safety Glass (Impact Resistant)
• Easy-Clean Fire Rated X-Ray Glass IGU (Insulated Glass Unit)
• Easy Clean X-Ray Glass IGU with Integral Mini-Blinds
• Easy Clean Laminated X-Ray Safety Glass (Impact Resistant)
• Easy Clean Switchable X-Ray Privacy Glass

Back to top

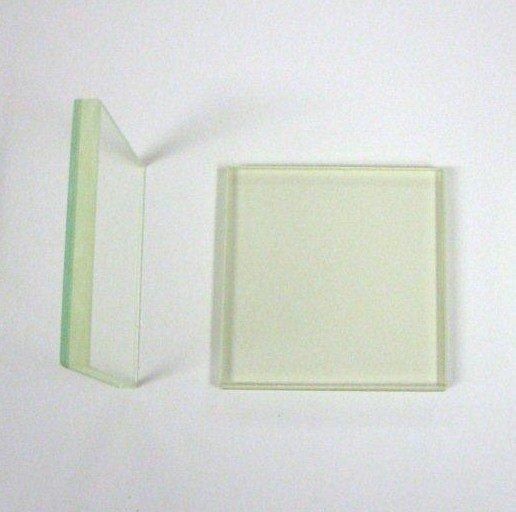

Ray-Bar Laminated X-Ray Glass

• Over 40 sizes available up to 48" x 96"
• 4 protective shielding levels available
• Optional Impact Resistant
• Available with lead-lined frames for wall applications

Laminated X-Ray Glass consists of an outer layer of 5/16" thick x-ray lead glass + inter-layer of PVB (Polyvinyl Butyral) and + an outer layer of 1/8" plate glass for a total thickness of approximately 7/16". This glass provides 1/16" (1.6mm) lead equivalent for x-ray gamma radiation and higher impact resistance than a single layer of standard X-Ray Glass.

Back to top

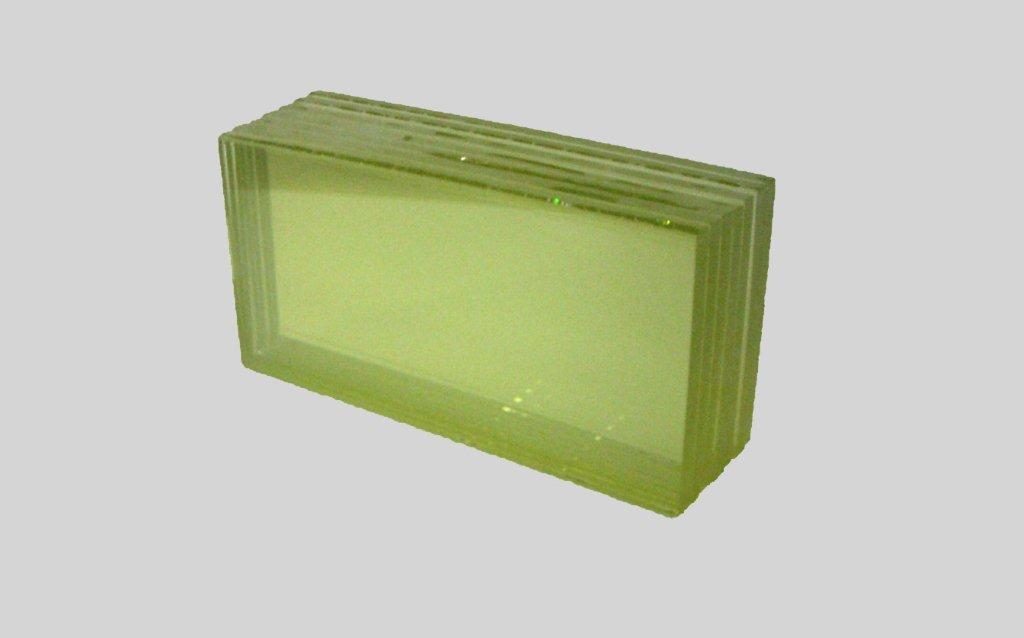

Ray-Bar Multi-Layer Laminated X-Ray Glass

• Utilized for higher radiation shielding requirements
• Many protective shielding levels available
• Optional Impact Resistant
• Available with lead-lined frames

Multi-Layer Laminated X-Ray Glass is utilized for higher lead shielding equivalency requirements when a single layer of X-Ray lead glass will not meet shielding requirements. Available from 2 to 16 layers of X-Ray Lead Glass (5/8" to 6") for lead shielding equivalencies of 1/8"(3.2mm) and up to 2"(38.1mm) for x-ray gamma radiation shielding applications such as in high energy isotopes, L-shields, viewports, hot labs, glove boxes and hot cells. This special Laminated X-Ray Glass can also have plate glass laminated to both outside faces for scratch resistance and added durability.

Please note: This glass does not shield against thermal neutrons or fast neutrons.

Back to top

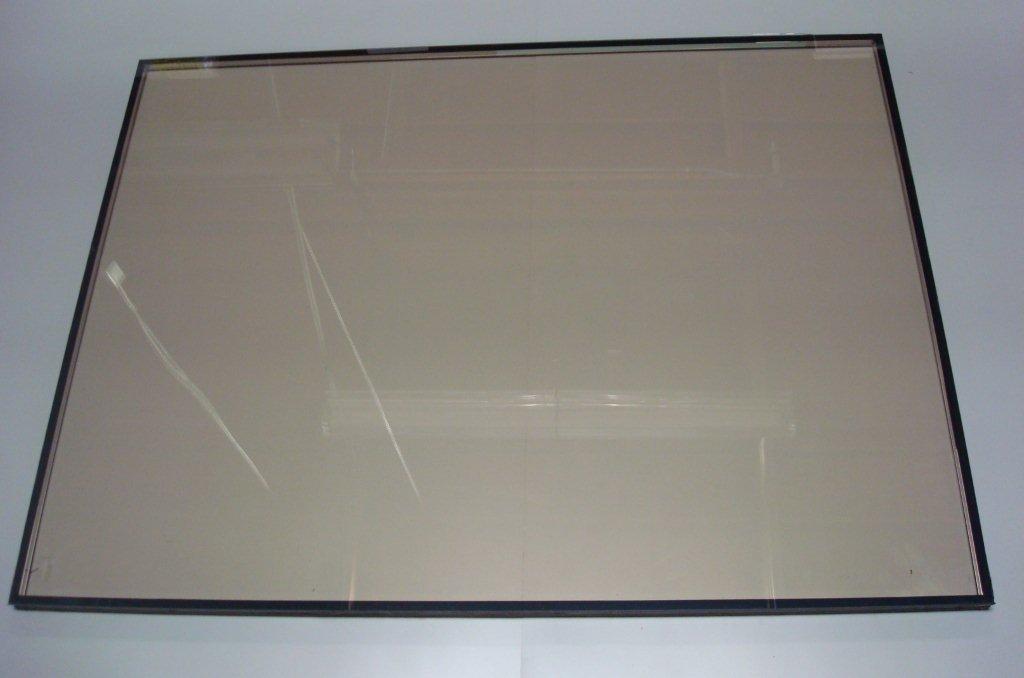

Ray-Bar X-Ray Shielded Insulated Glass Units (IGU)

• Provide insulation value, sound reduction or fire resistance
• Many protective shielding levels available
• Many options available
• Optional Impact Resistant
• Available with lead-lined frames for wall and door applications

X-ray lead glass units are dual-glazed with either ceramic fire-rated glazing, x-ray lead glass or polycarbonate. These are ideal for unique specialty applications or meeting multiple requirements such as fire ratings (including hose stream tests), positive pressure, insulation values, energy efficiency, security or other high radiation conditions. Contact us for additional information.

This product is also available as X-Ray Safety Glass which meets ANSI Z.97.1 and CPSC 16 CFR 1201 Cat 2 requirements for impact resistance.

Back to top

HIPAA Patient Privacy Compliance (With Ray-Bar X-Ray Glass Products)

X-Ray Frosted Glass

Ray-Bar can assist in the design and specification of specialized x-ray privacy glass. These products help the healthcare facility comply with Federal HIPAA patient privacy regulations designed to protect the privacy of the patient during the imaging process or other sensitive medical procedures.

Options of x-ray privacy glass include: frosted glass, patterned glass, internal blind units, and "mirrored" glass. These unique products provide radiation shielding while providing privacy. Another option is a switchable view from opaque to clear ("open" view or "closed" privacy) with internal mini or micro blinds.

See below for options in the privacy glass line.

Back to top

Ray-Bar X-Ray Privacy Glass

X-Ray Privacy Glass

Ray-Bar X-Ray Privacy Glass is an electronically switchable privacy glass that provides radiation shielding with the ability to instantly change from clear to privacy "frosting" either manually or automatically activated. The advantage of providing both privacy and x-ray protection is vital to patient privacy in medical imaging procedures.

When the electronic low voltage current is off, the glass is a soft opaque "frost". When the current is on, the glass is instantly clear for an unhindered view of the procedure and patient during diagnostic imaging or treatment. Contact us for additional information and size limitations.

Back to top

Ray-Bar X-Ray Frosted Glass

• Over 40 standard sizes for privacy applications
• Available Light, Medium and Full Frost
• Assists meeting HIPAA Patient Privacy Regulations
• Fast 4 to 10-day standard fabrication
• Many protective shielding levels available
• Optional Impact Resistant
• Available with lead-lined frames

Ray-Bar X-Ray Frosted Glass provides x-ray shielding and privacy needs in a variety of shades and patterns. Potential applications include dental, mammography, chiropractic and other patient sensitive privacy windows.

Door vision window frame units are also available as non-rated and UL fire-rated up to 90-minutes.

This product is also available as X-Ray Safety Glass which meets ANSI Z.97.1 and CPSC 16 CFR 1201 Cat 2 requirements for impact resistance.

Back to top

Ray-Bar "Mirrored" X-Ray Glass

• Over 40 standard sizes for privacy applications
• Available Bronze, Gray or Silver
• Assists meeting HIPAA Patient Privacy Regulations
• 4 to 10-day standard fabrication
• Many protective shielding levels available
• Optional Impact Resistant
• Available with lead-lined frames for door or wall applications

This special x-ray glass provides a reflective privacy aspect on the lighter side, also known as "two-way glass”, "one-way mirror" or "two-way mirrored". The privacy mirroring effect is not truly "one-sided," as it will "mirror" on the greater light source side from either side of the glass. This is an excellent option for x-ray windows common to the exterior of a building as during the daytime it will provide a mirror face privacy finish on the exterior. This glass may also be utilized in a medical imaging control room window as long as the control room side is dimmed a minimum of 20% in relation to the x-ray imaging side.

Ray-Bar "Mirrored" X-Ray Glass is available in grey or bronze tint, and is also available as X-Ray Safety Glass which meets ANSI Z.97.1 and CPSC 16 CFR 1201 Cat 2 requirements for impact resistance.

Back to top

Ray-Bar "Encased" X-Ray Glass (Abuse Resistant)

• Utilized in high impact zones or high abuse areas
• Over 40 standard sizes
• 4 to 10-day standard fabrication
• Many protective shielding levels available
• Optional Impact Resistant
• Available with lead-lined frames for wall and door applications

Ray-Bar X-Ray Glass is available "encased" in a clear abuse-resistant polymer with a clear scratch resistant Teflon coated surface. This increases the durability and product life for utilization in a high-risk location or environment. This product can be used in security applications when securely installed in an appropriate steel frame with tamper-proof fasteners in detention centers, jails or prison medical x-ray imaging rooms.

This product is also available as X-Ray Safety Glass which meets ANSI Z.97.1 and CPSC 16 CFR 1201 Cat 2 requirements for impact resistance. Ray-Bar "Encased" x-ray glass is not "impact-proof" or "shatterproof", and cannot be utilized in fire-rated assemblies.

Back to top

Ray-Bar X-Ray Security Glass (High Impact Resistant)

• Utilized in security applications
• Over 40 standard sizes
• 4 to 10 day standard fabrication
• Many protective shielding levels available
• Optional Impact Resistant
• Available with lead-lined frames for wall and door applications

X-Ray Security Glass is designed for security applications that require radiation shielding and high impact resistance. It is incorporated into our composite assembly with a special high impact clear polycarbonate glazing material bonded to both sides. When properly installed, this impact-resistant glass provides a much higher level of security than other conventional glazing products. It can be provided in a variety of lead shielding equivalencies and also certain ballistic resistant designs. However, this product is not compatible with fire-rated assemblies.

Contact Us to Learn How Ray-Bar Can Provide Custom X-Ray Glass for Your Specialty Application

For over 80 years, Ray-Bar Engineering has been a leading manufacturer of top-tier radiation shielding solutions including X-Ray Glass for medical, hospital, and industrial NDT facilities worldwide. Our radiation shielding products are designed and manufactured with precision to meet the strictest U.S. and international radiation and building safety standards.

Contact us to review your specific and unique design requirements with complete confidentiality. You can also request a quote online for pricing estimates on your custom x-ray glass project. For radiation shielding solutions that meet the highest industry standards, choose Ray-Bar Engineering.
